Calculate GVD of waveguide

# !uv add femwell  # uncomment to install
#! uvx inc run gmsh

import gdsfactoryplus as gfp

pdk = gfp.get_pdk()
pdk.activate()

import math
from collections import OrderedDict

import matplotlib.pyplot as plt
import numpy as np
import shapely
from femwell.maxwell.waveguide import compute_modes
from femwell.mesh import mesh_from_OrderedDict
from femwell.visualization import plot_domains
from scipy.interpolate import UnivariateSpline
from skfem import Basis, ElementTriP0
from skfem.io import from_meshio
from tqdm.auto import tqdm

width = 0.88  # um
height = 0.69  # um

wavelength_range = [500, 2500]
wavelegnth_step = 50

# Construct waveguide geometry
core = shapely.geometry.box(-width / 2, 0, +width / 2, height)
cladding = shapely.geometry.box(-width * 2, 0, width * 2, height * 3)
buried_oxide = shapely.geometry.box(-width * 2, -height * 2, width * 2, 0)
polygon = OrderedDict(
    core=core,
    cladding=cladding,
    buried_oxide=buried_oxide,
)

# Define material property and resolution of waveguide
resolutions = dict(
    core={"resolution": 0.02, "distance": 0.3},
    cladding={"resolution": 0.05, "distance": 0.3},
    buried_oxide={"resolution": 0.05, "distance": 0.3},
)

mesh = from_meshio(
    mesh_from_OrderedDict(polygon, resolutions, default_resolution_max=2)
)

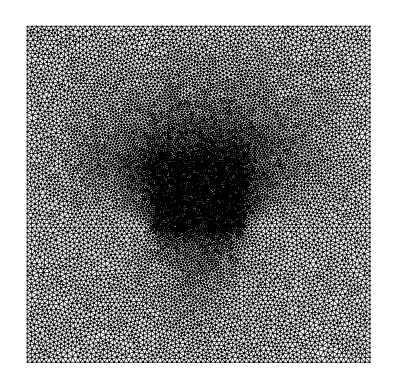

mesh.draw().show()

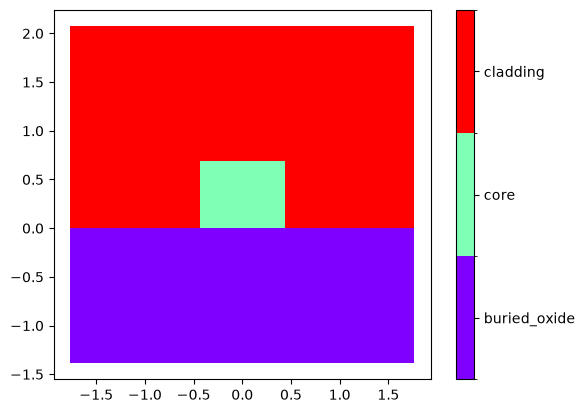

plot_domains(mesh)
plt.show()

def n_Si3N4(wavelength, fit=False):
    if wavelength >= 0.31 and wavelength <= 5.507:
        return math.sqrt(
            (3.0249 * wavelength**2) / (wavelength**2 - 0.1353406**2)
            + (40314 * wavelength**2) / (wavelength**2 - 1239.842**2)
            + 1
        )
    else:
        raise ValueError(
            f"wavelength provided is {wavelength}um, is out of the range for Si3N4"
        )


def n_SiO2(wavelength):
    if wavelength < 0.21 or wavelength > 6.7:
        raise ValueError(
            f"wavelength provided is {wavelength}um, is out of the range for {type}"
        )
    return np.sqrt(
        0.6961663 * wavelength**2 / (wavelength**2 - 0.0684043**2)
        + (0.4079426 * wavelength**2 / (wavelength**2 - 0.1162414**2))
        + (0.8974794 * wavelength**2 / (wavelength**2 - 9.896161**2))
        + 1
    )


n_dict = {"core": n_Si3N4, "cladding": n_SiO2, "buried_oxide": n_SiO2}

neff_list = []
aeff_list = []
basis0 = Basis(mesh, ElementTriP0())
epsilon = basis0.zeros()
wavelength_list = np.linspace(wavelength_range[0], wavelength_range[1], wavelegnth_step)

for wavelength in tqdm(wavelength_list):
    wavelength = wavelength * 1e-3
    for subdomain, n in n_dict.items():
        epsilon[basis0.get_dofs(elements=subdomain)] = n(wavelength) ** 2

    modes = compute_modes(basis0, epsilon, wavelength=wavelength, num_modes=3, order=1)
    modes_sorted = modes.sorted(key=lambda mode: -np.real(mode.te_fraction))
    mode = modes_sorted[0]

    neff_list.append(np.real(mode.n_eff))
    aeff_list.append(np.real(mode.calculate_effective_area()))

  0%|          | 0/50 [00:00<?, ?it/s]

y_spl = UnivariateSpline(wavelength_list, neff_list, s=0, k=3)
x_range = np.linspace(wavelength_list[0], wavelength_list[-1], 1000)
y_spl_2d = y_spl.derivative(n=2)

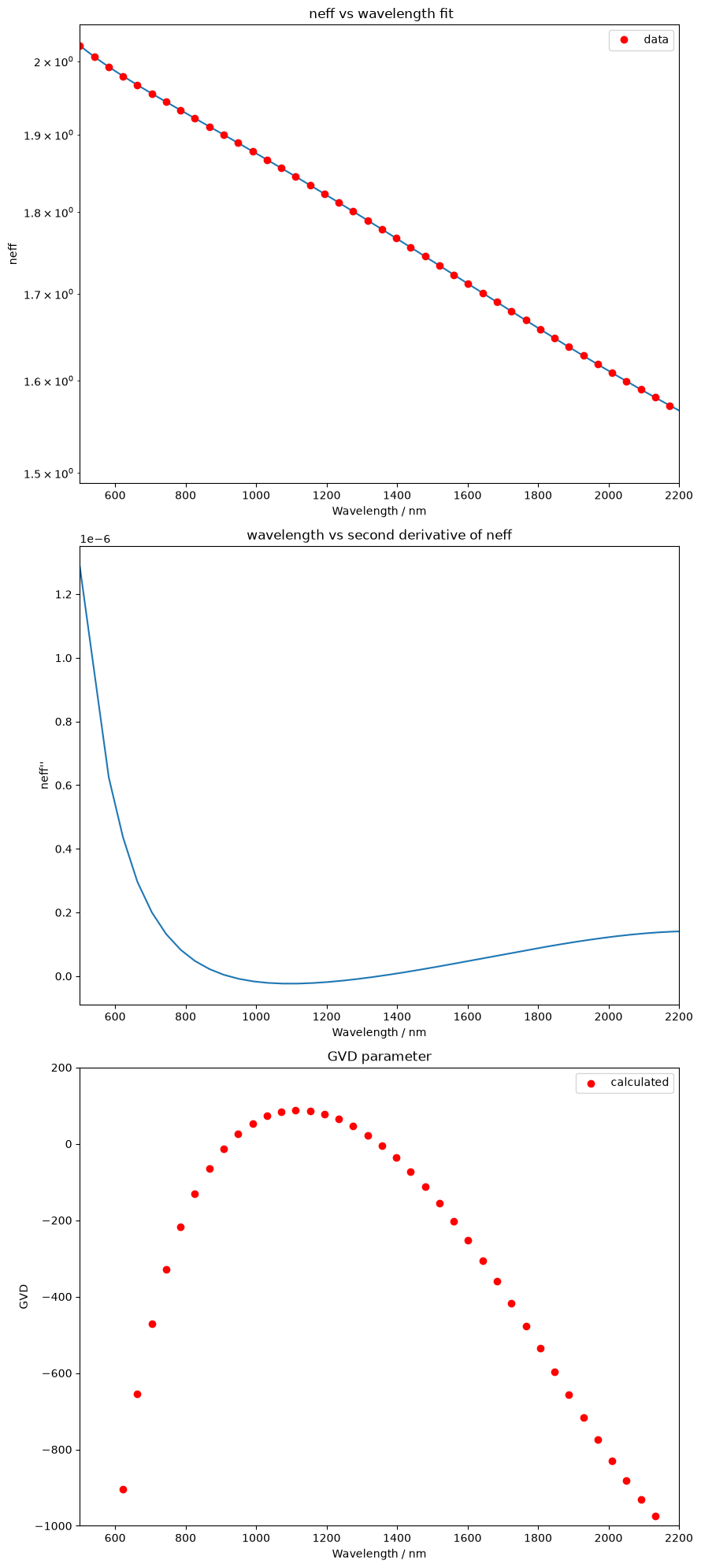

# Plot the result
fig, axs = plt.subplots(3, 1, figsize=(9, 20))

axs[0].set_xlabel("Wavelength / nm")
axs[0].set_ylabel("neff")
axs[0].set_title(" neff vs wavelength fit")
axs[0].semilogy(x_range, y_spl(x_range))
axs[0].semilogy(wavelength_list, neff_list, "ro", label="data")
axs[0].legend()
axs[0].set_xlim(500, 2200)

axs[1].set_xlabel("Wavelength / nm")
axs[1].set_ylabel("neff''")
axs[1].set_title("wavelength vs second derivative of neff")
axs[1].plot(x_range, y_spl_2d(x_range))
axs[1].set_xlim(500, 2200)

# ----Calculate and plot GVD
GVD = -wavelength_list / (2.99792e-7) * y_spl_2d(wavelength_list)
axs[2].scatter(wavelength_list, GVD, label="calculated", c="red")

axs[2].set_ylabel("GVD")
axs[2].set_xlabel("Wavelength / nm")
axs[2].set_ylim(-1000, 200)
axs[2].set_xlim(500, 2200)
axs[2].set_title("GVD parameter")
axs[2].legend()

plt.tight_layout()
plt.show()
