Running Palace Simulations

Palace is an open-source 3D electromagnetic simulator supporting eigenmode, driven (S-parameter), and electrostatic simulations. This notebook demonstrates using the gsim.palace API to run a driven simulation on a spiral inductor with Metal1 guard ring, and fitting the resulting S-parameters to an RLC equivalent circuit model for use in circulax.

Requirements: - IHP PDK: uv pip install ihp-gdsfactory - gsim with Palace backend - circulax: pip install circulax

Build inductor + guard ring

Known PDK limitation: gf.components.inductor accepts a turns parameter but does not use it in geometry construction. The spiral is always single-turn regardless of the value passed.

import gdsfactoryplus as gfp

pdk = gfp.get_pdk()
pdk.activate()

import gdsfactory as gf
from ihp import PDK

PDK.activate()

c = gf.components.inductor(
    width=2,
    space=2.1,
    diameter=50,
    turns=1,
    layer_metal="TopMetal2drawing",
    layer_inductor="INDdrawing",
    layer_metal_pin="TopMetal2drawing",
    layers_no_fill=("NoMetFillerdrawing",),
).copy()

# Define guard ring dimensions based on the inductor's bounding box
bbox = c.bbox()
xmin, ymin = bbox.left, bbox.bottom
xmax, ymax = bbox.right, bbox.top

margin_outer = 0.0
margin_inner = -15.0

xlo, xro = xmin - margin_outer, xmax + margin_outer
ybo, yto = ymin - margin_outer, ymax + margin_outer
xli, xri = xmin - margin_inner, xmax + margin_inner
ybi, yti = ymin - margin_inner, ymax + margin_inner

w_v = xli - xlo  # Width vertical walls
h_h = yto - yti  # Height horizontal walls
over = 0.5  # Overlap for Gmsh to fuse the pieces

# Left wall
c.add_ref(
    gf.components.rectangle(
        size=(w_v + over, yto - ybo), layer="Metal1drawing", centered=True
    )
).move((xlo + w_v / 2 + over / 2, (yto + ybo) / 2))
# Right wall
c.add_ref(
    gf.components.rectangle(
        size=(w_v + over, yto - ybo), layer="Metal1drawing", centered=True
    )
).move((xro - w_v / 2 - over / 2, (yto + ybo) / 2))
# Top wall
c.add_ref(
    gf.components.rectangle(
        size=(xro - xlo, h_h + over), layer="Metal1drawing", centered=True
    )
).move(((xro + xlo) / 2, yto - h_h / 2 - over / 2))
# Bottom wall
c.add_ref(
    gf.components.rectangle(
        size=(xro - xlo, h_h + over), layer="Metal1drawing", centered=True
    )
).move(((xro + xlo) / 2, ybo + h_h / 2 + over / 2))

cc = c.copy()

c.draw_ports()

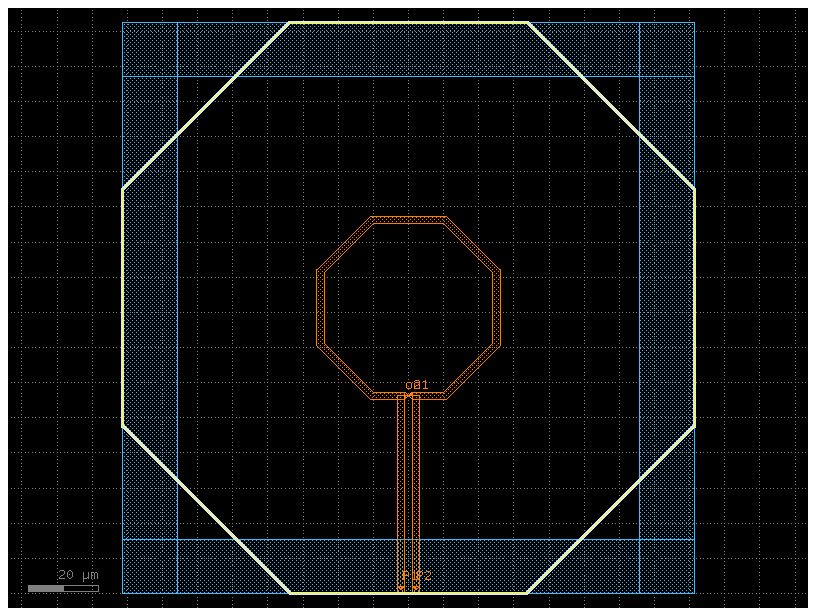

c.plot()

png

Configure and run simulation with DrivenSim

from gsim.palace import DrivenSim

# Create simulation object
sim = DrivenSim()

# Set output directory
sim.set_output_dir("./palace-sim-inductor")

# Set the component geometry
sim.set_geometry(cc)

# Configure layer stack from active PDK
sim.set_stack(substrate_thickness=180.0, include_substrate=True)

# Configure ports
sim.add_port(
    "P1", from_layer="metal1", to_layer="topmetal2", geometry="via", excited=True
)
sim.add_port(
    "P2", from_layer="metal1", to_layer="topmetal2", geometry="via", excited=True
)

# Configure driven simulation (frequency sweep for S-parameters)
sim.set_driven(fmin=10e9, fmax=200e9, num_points=50)

# Validate configuration
print(sim.validate_config())

Validation: PASSED

# Generate mesh (presets: "coarse", "default", "fine")
sim.set_airbox(margin_x=50, margin_y=50, z_above=50, z_below=5)
sim.mesh(preset="default", refined_mesh_size=1.5)

[34m21:31:47[0m | [33m[22mWARNING [0m | [33m[22mSmall conductor feature detected (2.000 um) may be under-resolved by refined_mesh_size=1.500 um. The heuristic target is <= 1.000 um (2 cells/feature). Reduce refined_mesh_size; auto_size=True preserves an explicit size.[0m





Mesh Summary
========================================
Dimensions: 262.6 x 262.6 x 250.9 µm
Nodes:      22,430
Elements:   167,881
Tetrahedra: 126,378
Edge length: 0.42 - 86.86 µm
Quality:    0.584 (min: 0.009)
SICN:       0.633 (all valid)
Worst element distortion, κ: 105.862 (tet centers; 1 is ideal)
Estimated Field DOFs: 805,126 (order 2; before Palace preprocessing)
Mesh hash:  sha256:f282a49bc19c5eb7  (gmsh 4.15.2, gsim 0.8.0)
Mesher:     2D algorithm 5, 3D algorithm 1, threads 1 (1D/2D/3D limits 1/1/1)
----------------------------------------
Volumes (4):
  - silicon [1]
  - sio2 [2]
  - sin [3]
  - air [4]
Surfaces (12):
  - metal1_xy [5]
  - metal1_z [6]
  - topmetal2_xy [7]
  - topmetal2_z [8]
  - P1 [9]
  - P2 [10]
  - air__silicon [11]
  - silicon__sio2 [12]
  - air__sio2 [13]
  - sin__sio2 [14]
  - air__sin [15]
  - air__None [16]
----------------------------------------
Mesh:   palace-sim-inductor/palace.msh

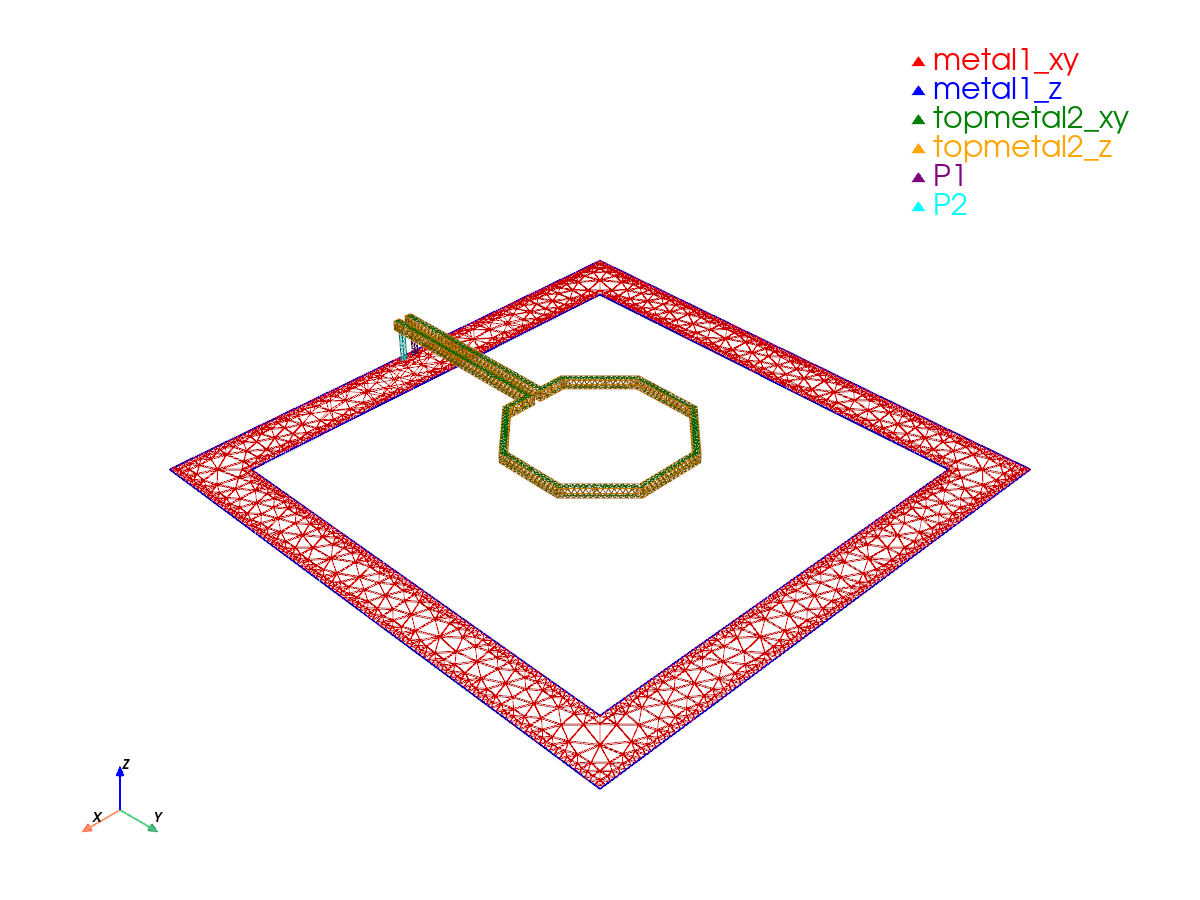

sim.plot_mesh(show_groups=["metal", "P"])

png

Run simulation on cloud

# Run simulation on GDSFactory+ cloud
results = sim.run(check_cache=True)

  palace-9e79743c  [####################] 100%  complete  elapsed 0m 00s


Extracting results.tar.gz...
Downloaded 13 files to /home/runner/work/simulation-templates/simulation-templates/docs/notebooks/sim-data-palace-9e79743c

results.plot_interactive()

Port mapping: Port 1: P1, Port 2: P2

results.plot_interactive(phase=True)

Port mapping: Port 1: P1, Port 2: P2

Analytical RLC Model Fit

Extract Differential Impedance

We assemble the S-parameter matrix from the simulation results into a scikit-rf Network object, which handles the conversion to Z-parameters. From the 2×2 Z-matrix we compute the differential impedance \(Z_\text{diff} = Z_{11} - Z_{12} - Z_{21} + Z_{22}\), which is the impedance seen between the two ports of the inductor under differential excitation.

import numpy as np
import skrf as rf

f = results.freq * 1e9  # GHz -> Hz
w = 2 * np.pi * f

ports = results.port_names
n = len(ports)

S = np.zeros((len(f), n, n), dtype=complex)
for i, pi in enumerate(ports):
    for j, pj in enumerate(ports):
        S[:, i, j] = results[(pi, pj)].complex

ntwk = rf.Network(f=f, s=S, f_unit="hz")
Z = ntwk.z

Z_sim = Z[:, 0, 0] - Z[:, 0, 1] - Z[:, 1, 0] + Z[:, 1, 1]
f_sim = f

RLC Model Definition

We fit an RLC equivalent circuit model to the simulated impedance data. The inductor is modeled as a series RL branch in parallel with a parasitic capacitance C:

RLC circuit

The total impedance is:

\[ Z(f) = \frac{1}{j2\pi f C + \frac{1}{R + j2\pi f L}} \]

We define the RLC impedance as a function of frequency. The total admittance (inverse of impedance) is the sum of the admittance of the series RL branch and the parasitic capacitance:

\[ \frac{1}{Z(f)} = \frac{1}{R + j2\pi f L} + j2\pi f C \]

We rewrite the RLC impedance in normalized form. Defining \(\tilde\omega = \omega/\omega_0\), the dimensionless impedance is:

\[ z(\tilde\omega, Q) = \frac{1 + j\tilde\omega Q}{1 - \tilde\omega^2 + j\tilde\omega/Q} \]

so that \(Z(f) = R \cdot z(f/f_0, Q)\).

The loss function measures the total squared error between the model and the simulated data across all frequencies:

\[ \mathcal{L}(f_0, Q, R) = \sum_k \left| Z_\text{sim}(f_k) - R \cdot z(f_k/f_0, Q) \right|^2 \]

This is a real-valued scalar that JAX will differentiate with respect to \(f_0\), \(Q\), and \(R\) to drive the optimization.

import jax
import jax.numpy as jnp

jax.config.update("jax_enable_x64", True)


# The RLC impedance function
def z_rlc(w, Q):
    return (1 + 1j * w * Q) / (1 - w**2 + 1j * w / Q)


f_jnp = jnp.array(f_sim, dtype=jnp.float64)
Z_target = jnp.array(Z_sim, dtype=jnp.complex128)


@jax.jit
def loss_fn(param):
    z_fit = param[2] * z_rlc(f_jnp / param[0], param[1])
    z_err = Z_target - z_fit
    return jnp.real(jnp.sum(z_err * jnp.conj(z_err)))

Initial Parameter Estimation

We estimate the initial values of \(R\), \(L\), and \(C\) directly from the data before running the optimization. Good initial values help the optimizer converge faster and avoid local minima.

\(f_0\) is read from the frequency at which \(|Z|\) is maximum
\(R \approx \text{Re}(Z)|_{f \to 0}\), the low-frequency resistance
\(Q\) is estimated from the -3 dB bandwidth: \(Q = f_0 / \Delta f\), where \(\Delta f\) is the width of the peak above \(|Z|_\text{max}/\sqrt{2}\)

absZ = np.abs(Z_sim)
f0_ini = float(f_sim[np.argmax(absZ)])
R_ini = float(Z_sim.real[0])
mask = absZ > np.max(absZ) / np.sqrt(2)
Q_ini = f0_ini / np.ptp(f_sim[mask]) if mask.sum() > 1 else 5.0
par_ini = jnp.array([f0_ini, Q_ini, R_ini])

print(f"f0 = {f0_ini / 1e9:.3f} GHz | Q = {Q_ini:.3f} | R = {R_ini:.4f} Ohm")

f0 = 168.980 GHz | Q = 5.000 | R = 0.9722 Ohm

Optimization

We minimize the squared error between the model and the data over all frequencies using the Adam optimizer.

At each step, Adam computes the gradient \(\nabla_\theta \mathcal{L}\) automatically via JAX autodiff and updates the parameters:

\[ \theta_{n+1} = \theta_n - \alpha \cdot \text{Adam}(\nabla_\theta \mathcal{L}(\theta_n)) \]

import optax

optimizer = optax.adam(learning_rate=0.05)
opt_state = optimizer.init(par_ini)
vg_fn = jax.jit(jax.value_and_grad(loss_fn))
vg_fn(par_ini)

par = par_ini
for step in range(1000):
    loss, grads = vg_fn(par)
    if step % 200 == 0:
        print(
            f"step {step:4d}: f0={float(par[0]) / 1e9:.4f} GHz  Q={float(par[1]):.3f}  R={float(par[2]):.4f}  loss={float(loss):.3e}"
        )
    updates, opt_state = optimizer.update(grads, opt_state)
    par = optax.apply_updates(par, updates)

f0_fit, Q_fit, R_fit = float(par[0]), float(par[1]), float(par[2])

step    0: f0=168.9796 GHz  Q=5.000  R=0.9722  loss=2.815e+07


step  200: f0=168.9796 GHz  Q=16.090  R=10.0055  loss=4.477e+06
step  400: f0=168.9796 GHz  Q=18.802  R=7.8604  loss=3.385e+06


step  600: f0=168.9796 GHz  Q=21.628  R=6.3487  loss=2.665e+06
step  800: f0=168.9796 GHz  Q=23.966  R=5.4329  loss=2.302e+06

Recover L and C

Once converged, \(L\) and \(C\) are recovered analytically from the fitted \((f_0, Q, R)\) using the RLC resonance relations:

\[ L = \frac{Q \cdot R}{\omega_0}, \quad C = \frac{1}{L\omega_0^2} \]

where \(\omega_0 = 2\pi f_0\).

w0 = 2 * np.pi * f0_fit
tau = Q_fit / w0
L_fit = tau * R_fit
C_fit = 1 / (L_fit * w0**2)

print(f"R = {R_fit:.6f} Ohm")
print(f"L = {L_fit * 1e12:.4f} pH")
print(f"C = {C_fit * 1e15:.4f} fF")
print(f"f0 = {f0_fit / 1e9:.4f} GHz  Q = {Q_fit:.3f}")

R = 4.873999 Ohm
L = 118.1224 pH
C = 7.5100 fF
f0 = 168.9796 GHz  Q = 25.731

Results

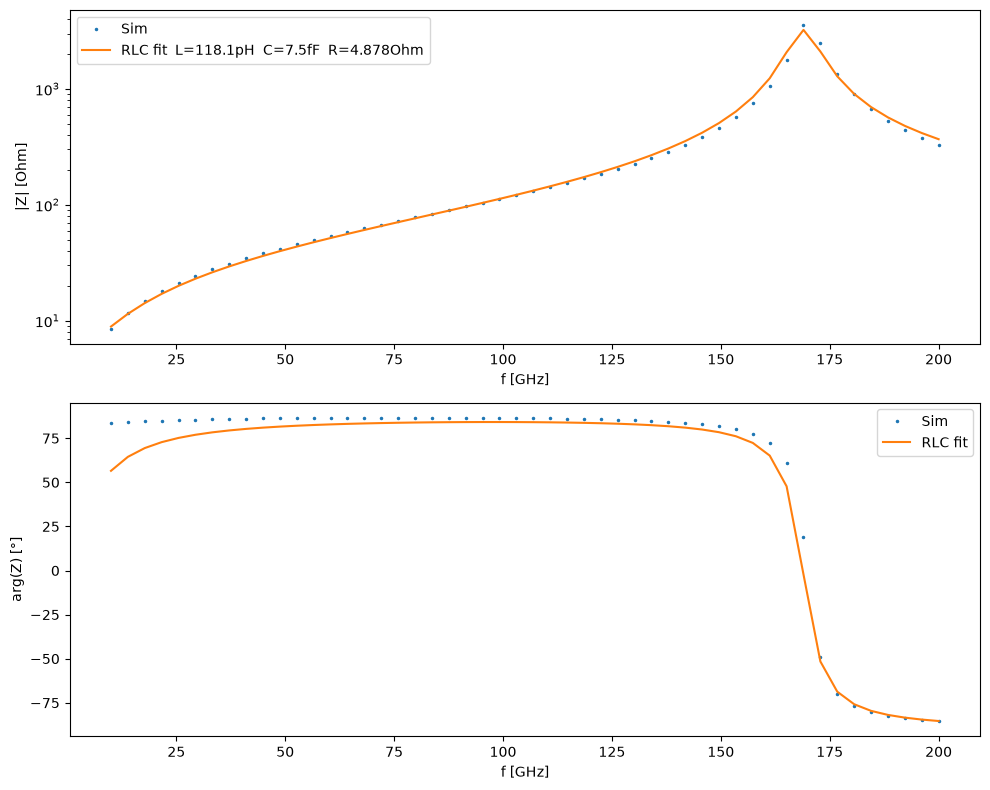

We evaluate the fitted model across the full frequency range and compare it against the simulation data. The two plots show the magnitude \(|Z(f)|\) on a log scale and the phase \(\arg(Z(f))\) in degrees — a good fit should reproduce both the inductive rise, the resonance peak, and the phase transition.

import matplotlib.pyplot as plt

print(f"\nR = {R_fit:.6f} Ohm")
print(f"L = {L_fit * 1e12:.4f} pH")
print(f"C = {C_fit * 1e15:.4f} fF")
print(f"f0 = {f0_fit / 1e9:.4f} GHz  Q = {Q_fit:.3f}")

Z_fit = np.array([R_fit * z_rlc(f / f0_fit, Q_fit) for f in f_sim])

fig, axes = plt.subplots(2, 1, figsize=(10, 8))
axes[0].plot(f_sim / 1e9, np.abs(Z_sim), ".", ms=3, label="Sim")
axes[0].plot(
    f_sim / 1e9,
    np.abs(Z_fit),
    label=f"RLC fit  L={L_fit * 1e12:.1f}pH  C={C_fit * 1e15:.1f}fF  R={R_fit:.3f}Ohm",
)
axes[0].set_yscale("log")
axes[0].set_xlabel("f [GHz]")
axes[0].set_ylabel("|Z| [Ohm]")
axes[0].legend()

axes[1].plot(f_sim / 1e9, np.angle(Z_sim, deg=True), ".", ms=3, label="Sim")
axes[1].plot(f_sim / 1e9, np.angle(Z_fit, deg=True), label="RLC fit")
axes[1].set_xlabel("f [GHz]")
axes[1].set_ylabel("arg(Z) [°]")
axes[1].legend()
plt.tight_layout()
plt.show()

R = 4.873999 Ohm
L = 118.1224 pH
C = 7.5100 fF
f0 = 168.9796 GHz  Q = 25.731

png

Circulax-Based Inverse Design

Define Circulax Component

With the fitted values from the analytical fit, we define my_inductor as a frequency-domain circulax component using @fdomain_component. The decorator converts the RLC admittance matrix into a two-port component compatible with any circulax netlist.

The admittance matrix for a symmetric two-port is:

\[ Y = \begin{pmatrix} Y_\text{tot} & -Y_\text{tot} \\ -Y_\text{tot} & Y_\text{tot} \end{pmatrix}, \quad Y_\text{tot} = \frac{1}{R + j2\pi f L} + j2\pi f C \]

The netlist connects the inductor directly between IN and GND — a single-port measurement configuration, consistent with how \(Z_\text{diff}\) was extracted from the simulation.

from circulax import compile_circuit
from circulax.s_transforms import fdomain_component

# Equivalent circuit:
#
#         --- C ---
#        |         |
# p1 ----+---R--L--+---- p2


@fdomain_component(ports=("p1", "p2"))
def my_inductor(f, R=1.0, L=100e-12, C=10e-15):
    w = 2.0 * jnp.pi * f
    Y_RL = 1.0 / (R + 1j * w * L)  # series RL branch
    Y_C = 1j * w * C  # parallel capacitance
    Y = Y_RL + Y_C
    return jnp.array([[Y, -Y], [-Y, Y]], dtype=jnp.complex128)


net_dict = {
    "instances": {
        "GND": {"component": "ground"},
        "L1": {
            "component": "my_inductor",
            "settings": {"R": R_fit, "L": L_fit, "C": C_fit},
        },
    },
    "connections": {
        "L1,p2": "GND,p1",
    },
    "ports": {
        "IN": "L1,p1",
    },
}

models = {"my_inductor": my_inductor, "ground": lambda: 0}

circuit = compile_circuit(net_dict, models)
groups = circuit.groups
freqs = jnp.asarray(f_sim)
Z_target = jnp.asarray(Z_sim)

print("Circuit compiled. System size:", circuit.sys_size)
print("Port map:", circuit.port_map)

Circuit compiled. System size: 2
Port map: {'IN': 1, 'L1,p1': 1, 'GND,p1': 0, 'L1,p2': 0}

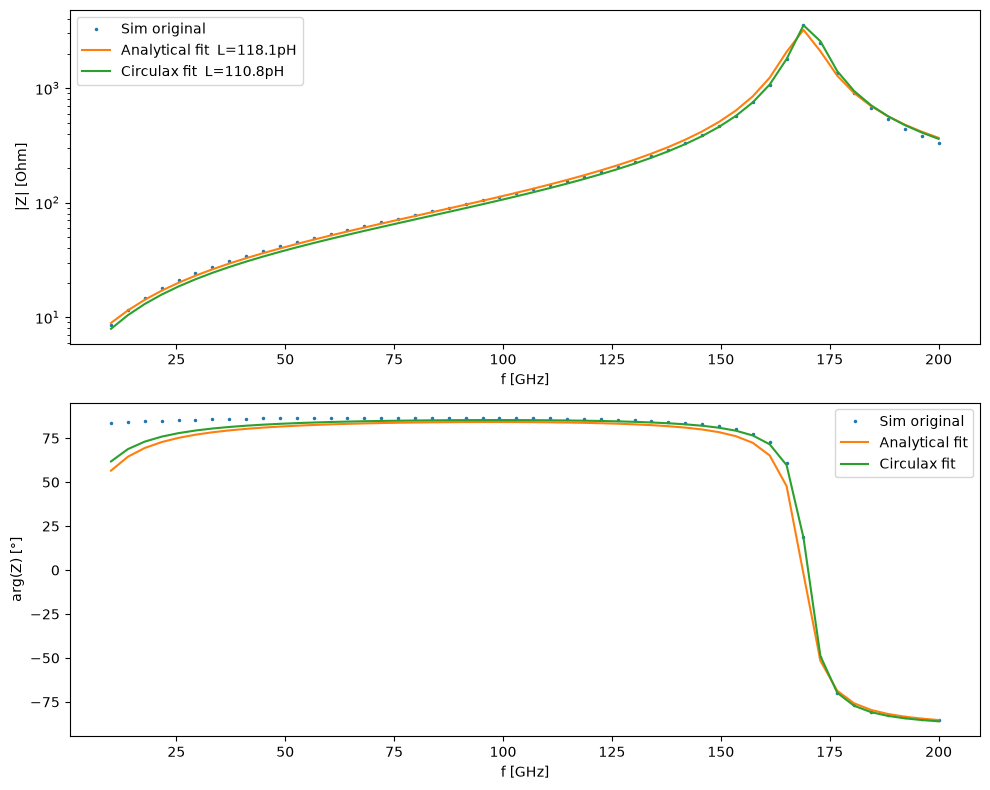

Inverse Design with Circulax

We use circulax inside the optimization loop as part of a differentiable inverse design workflow. At each step, we perform a full AC sweep and minimize the discrepancy between the compact-model impedance and the Palace simulation data:

\[ \mathcal{L}(R,L,C) = \sum_k \left| Z_{\mathrm{target}}(f_k) - z_0 \frac{ 1 + S_{11}(f_k) }{ 1 - S_{11}(f_k) } \right|^2 \]

where the impedance is recovered from the simulated reflection coefficient through the standard one-port relation

\[ Z(f) = z_0 \frac{ 1 + S_{11}(f) }{ 1 - S_{11}(f) }. \]

The optimization is initialized using the analytical RLC fit parameters. To ensure physically meaningful values throughout the optimization, we optimize unconstrained variables and map them to positive parameters using a softplus parameterization:

\[ R,L,C > 0. \]

This enables stable gradient-based optimization using JAX automatic differentiation and Optax optimizers.

from circulax.solvers import setup_ac_sweep
from circulax.utils import update_params_dict

# Port node for IN — check port_map output above
port_node = next(v for k, v in circuit.port_map.items() if k == "IN")


# Positive parametrization
# raw_params -> softplus -> positive physical parameters
def positive(x):
    return jax.nn.softplus(x)


# inverse-softplus
def inv_softplus(y):
    return jnp.log(jnp.exp(y) - 1.0)


def loss_circulax(raw_params):
    params = positive(raw_params)
    R, L, C = params
    g = update_params_dict(groups, "my_inductor", "L1", "R", R)
    g = update_params_dict(g, "my_inductor", "L1", "L", L)
    g = update_params_dict(g, "my_inductor", "L1", "C", C)

    y_op = circuit.with_groups(g)()
    ac = setup_ac_sweep(groups=g, num_vars=circuit.sys_size, port_nodes=[port_node])
    sol = ac(freqs=freqs, y_dc=y_op)

    S11 = sol[:, 0, 0]
    Z_cx = 50.0 * (1 + S11) / (1 - S11)
    err_re = jnp.real(Z_cx) - jnp.real(Z_target)
    err_im = jnp.imag(Z_cx) - jnp.imag(Z_target)
    loss = jnp.mean(err_re**2 + err_im**2)

    return loss


raw_params_ini = inv_softplus(
    jnp.array(
        [
            R_fit,
            L_fit,
            C_fit,
        ]
    )
)

optimizer = optax.adam(1e-2)
opt_state = optimizer.init(raw_params_ini)
vg_fn = jax.jit(jax.value_and_grad(loss_circulax))
vg_fn(raw_params_ini)  # warm-up

raw_params = raw_params_ini
for step in range(500):
    loss, grads = vg_fn(raw_params)
    if step % 20 == 0:
        params = positive(raw_params)
        R_, L_, C_ = params
        print(
            f"step {step:3d}: R={float(R_):.5f} Ohm  L={float(L_) * 1e12:.3f} pH  C={float(C_) * 1e15:.3f} fF  loss={float(loss):.3e}"
        )
    updates, opt_state = optimizer.update(grads, opt_state)
    raw_params = optax.apply_updates(raw_params, updates)

R_fit_cx, L_fit_cx, C_fit_cx = [float(x) for x in positive(raw_params)]
f0_cx = 1.0 / (2 * np.pi * np.sqrt(L_fit_cx * C_fit_cx))
Q_cx = 2 * np.pi * f0_cx * L_fit_cx / R_fit_cx

print(f"\nR = {R_fit_cx:.6f} Ohm")
print(f"L = {L_fit_cx * 1e12:.4f} pH")
print(f"C = {C_fit_cx * 1e15:.4f} fF")
print(f"f0 = {f0_cx / 1e9:.4f} GHz  Q = {Q_cx:.3f}")

step   0: R=4.87400 Ohm  L=118.122 pH  C=7.550 fF  loss=7.717e+04
step  20: R=4.71747 Ohm  L=117.313 pH  C=7.473 fF  loss=6.631e+03
step  40: R=4.52508 Ohm  L=117.588 pH  C=7.451 fF  loss=4.221e+03
step  60: R=4.37100 Ohm  L=117.802 pH  C=7.441 fF  loss=2.921e+03
step  80: R=4.27257 Ohm  L=117.778 pH  C=7.444 fF  loss=2.538e+03
step 100: R=4.22115 Ohm  L=117.569 pH  C=7.458 fF  loss=2.380e+03
step 120: R=4.19291 Ohm  L=117.249 pH  C=7.479 fF  loss=2.240e+03
step 140: R=4.16899 Ohm  L=116.894 pH  C=7.501 fF  loss=2.096e+03
step 160: R=4.14279 Ohm  L=116.531 pH  C=7.525 fF  loss=1.952e+03
step 180: R=4.11470 Ohm  L=116.162 pH  C=7.549 fF  loss=1.810e+03
step 200: R=4.08612 Ohm  L=115.787 pH  C=7.573 fF  loss=1.671e+03
step 220: R=4.05762 Ohm  L=115.409 pH  C=7.598 fF  loss=1.538e+03


step 240: R=4.02929 Ohm  L=115.031 pH  C=7.623 fF  loss=1.411e+03
step 260: R=4.00126 Ohm  L=114.654 pH  C=7.648 fF  loss=1.290e+03
step 280: R=3.97368 Ohm  L=114.282 pH  C=7.673 fF  loss=1.177e+03
step 300: R=3.94669 Ohm  L=113.915 pH  C=7.698 fF  loss=1.071e+03
step 320: R=3.92039 Ohm  L=113.557 pH  C=7.723 fF  loss=9.738e+02
step 340: R=3.89488 Ohm  L=113.207 pH  C=7.747 fF  loss=8.840e+02
step 360: R=3.87022 Ohm  L=112.867 pH  C=7.770 fF  loss=8.020e+02
step 380: R=3.84647 Ohm  L=112.538 pH  C=7.793 fF  loss=7.274e+02
step 400: R=3.82368 Ohm  L=112.220 pH  C=7.815 fF  loss=6.601e+02
step 420: R=3.80188 Ohm  L=111.916 pH  C=7.836 fF  loss=5.997e+02
step 440: R=3.78108 Ohm  L=111.624 pH  C=7.857 fF  loss=5.457e+02
step 460: R=3.76130 Ohm  L=111.345 pH  C=7.877 fF  loss=4.977e+02


step 480: R=3.74254 Ohm  L=111.079 pH  C=7.896 fF  loss=4.552e+02

R = 3.724799 Ohm
L = 110.8271 pH
C = 7.9137 fF
f0 = 169.9450 GHz  Q = 31.771

Results

We compare the analytical fit and the circulax inverse design against the original simulation data.

g_final = update_params_dict(groups, "my_inductor", "L1", "R", R_fit_cx)
g_final = update_params_dict(g_final, "my_inductor", "L1", "L", L_fit_cx)
g_final = update_params_dict(g_final, "my_inductor", "L1", "C", C_fit_cx)

y_op_final = circuit.with_groups(g_final)()
ac_final = setup_ac_sweep(
    groups=g_final, num_vars=circuit.sys_size, port_nodes=[port_node]
)
sol_final = ac_final(freqs=freqs, y_dc=y_op_final)

S11_final = sol_final[:, 0, 0]
Z_cx_final = 50.0 * (1 + S11_final) / (1 - S11_final)

fig, axes = plt.subplots(2, 1, figsize=(10, 8))
axes[0].plot(f_sim / 1e9, np.abs(Z_sim), ".", ms=3, label="Sim original")
axes[0].plot(
    f_sim / 1e9, np.abs(Z_fit), label=f"Analytical fit  L={L_fit * 1e12:.1f}pH"
)
axes[0].plot(
    f_sim / 1e9, np.abs(Z_cx_final), label=f"Circulax fit  L={L_fit_cx * 1e12:.1f}pH"
)
axes[0].set_yscale("log")
axes[0].set_xlabel("f [GHz]")
axes[0].set_ylabel("|Z| [Ohm]")
axes[0].legend()

axes[1].plot(
    f_sim / 1e9, np.angle(np.array(Z_sim), deg=True), ".", ms=3, label="Sim original"
)
axes[1].plot(f_sim / 1e9, np.angle(np.array(Z_fit), deg=True), label="Analytical fit")
axes[1].plot(
    f_sim / 1e9, np.angle(np.array(Z_cx_final), deg=True), label="Circulax fit"
)
axes[1].set_xlabel("f [GHz]")
axes[1].set_ylabel("arg(Z) [°]")
axes[1].legend()
plt.tight_layout()
plt.show()

png
