Now we will run an analysis using the device data we uploaded in the previous notebook.

As before, make sure you have the following environment variables set or added to a .env file:

GDSFACTORY_HUB_API_URL="https://{org}.gdsfactoryhub.com"
GDSFACTORY_HUB_QUERY_URL="https://query.{org}.gdsfactoryhub.com"
GDSFACTORY_HUB_KEY="<your-gdsfactoryplus-api-key>"

import getpass

from tqdm.notebook import tqdm

import gdsfactoryhub as gfh
from gdsfactoryhub import FunctionTargetModel

project_id = f"cutback-{getpass.getuser()}"
client = gfh.create_client_from_env(project_id=project_id)
api = client.api()
query = client.query()
utils = client.utils()

Die analysis

You can either trigger analysis automatically by defining it in the design manifest, using the UI or using the Python DoData library.

from gdsfactoryhub.functions.die import cutback_loss

cutback_loss.run?

die_pks = [d["pk"] for d in query.dies().execute().data]
cutback_loss.run(die_pkey=die_pks[0])

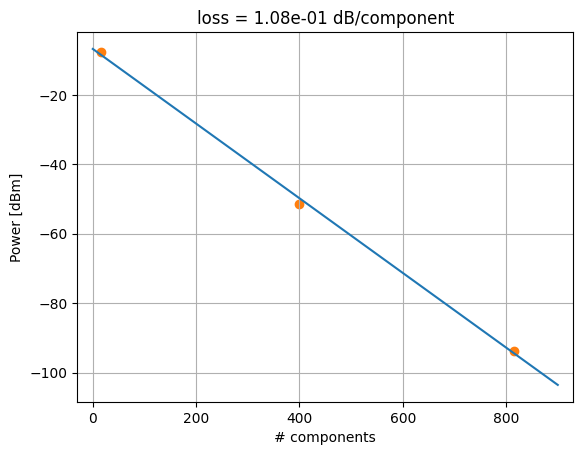

png

{'output': {'component_loss': np.float64(0.10753299380599622),
  'insertion_loss': np.float64(6.784093157796774)},
 'summary_plot': <Figure size 640x480 with 0 Axes>,
 'die_pkey': '66ab2c3a-f56e-407a-82e4-703ee367a2b1'}




<Figure size 640x480 with 0 Axes>

with gfh.suppress_api_error():
    result = api.upload_function(
        function_id="cutback_loss",
        target_model="die",
        file=gfh.get_module_path(cutback_loss),
        test_target_model_pk=die_pks[0],
        test_kwargs={},
    )

Duplicate function

results = []
for die_pk in (pb := tqdm(die_pks)):
    pb.set_postfix(die_pk=die_pk)
    result = api.start_analysis(
        analysis_id=f"die-cutback-{die_pk}",
        function_id="cutback_loss",
        target_model=FunctionTargetModel.DIE,
        target_model_pk=die_pk,
        kwargs={},
    )
    results.append(result)

  0%|          | 0/45 [00:00<?, ?it/s]

Let's have a look at the last analysis:

analysis_pks = [r["pk"] for r in results]
utils.analyses().wait_for_completion(pks=analysis_pks)
analyses = query.analyses().in_("pk", analysis_pks).execute().data
succesful_analyses = [a for a in analyses if a["status"] == "COMPLETED"]
analysis = succesful_analyses[-1]
img = api.download_plot(analysis["summary_plot"]["path"])
img.resize((530, 400))

Waiting for analyses:   0%|          | 0/45 [00:00<?, ?it/s]

png
